IIGDT World International Institute of
Geometric Dimensioning & Tolerancing


Level 4
GD&T - Advanced Applications
Course Outline

Course Objective To provide applied working knowledge of advanced GD&T applications involving optimization strategies for given design applications, manufacturing methodologies and measurement planning.
Course Length 2 Days (16-hours)
CEUs 1.6
Course Content In-Depth Analysis & Implications of Advanced Principles

  • MMB, LMB and RFB applied to datum features of size
  • Multiple feature patterns used to define a single datum, and negative implications of using “non-functional” surfaces as datum features
  • 3D analysis of composite position callouts, in relationship to multiple-hole pattern defined as a single datum
  • Calculations for determining allowable position tolerance for floating and fixed fastener designs
  • Positioning holes and pattern of holes at “zero tolerance” for optimizing manufacturability and critical cost reductions
  • Positioning coaxial cylinders from independent datum features -vs- to each other and defined as compound datum features
  • Boundary principles used with profile for non-cylindrical shapes
  • Mathematical definitions and implications of ASME Y14.5.1M-1994
  • Surface roughness implications to features of size and form constraints
  Optimization Strategies in Applications & Analysis of Design, Manufacturing and Measurement

  • Analysis and discussion of common error implications of dimensioning and tolerancing of tooling and functional gaging, based on product designs
  • Evaluate negative implications of common incorrect measurement procedures on coordinate measuring machines and discuss procedures to resolve / minimize problems
  • Review and analyze engineering drawings and identify areas of negative financial implications, address questions to provide clarification/direction and make recommendations to optimize design intent and achieve maximum return on investment



GD&T Implications to Corporate Six-Sigma Initiatives
Target Audience Anyone requiring a greater understanding of GD&T from an advanced applications perspective. Specifiers and decision makers of engineering requirements and specifications as well as specifiers of manufacturing processes, measurement applications and statistical analysis. Engineers, designers, metrologists, technicians, machinists, toolmakers, senior inspectors, senior technicians, statisticians and mechanical engineers at all levels.
Prerequisites GD&T - Intermediate Principles! It is critical that each individual reviews the course content from the introductory course to ensure a positive level of proficiency in all areas. If not proficient, it is highly recommended that all individuals take or retake the introductory course prior to the advanced course to ensure an optimum and proficient level of understanding.
  The GD&T - Advanced Applications Course Outline is available in PDF format.

Training Transformation Business Transformation 8-Tracks Program Overview
Training Transformation Training Transformation 8-Tracks Program Overview
To read about the Training
Transformation, click here
.
To read about the Business Transformation, click here.

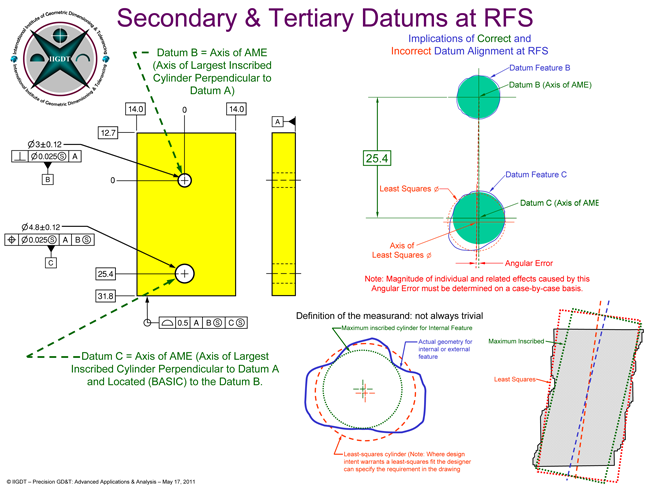

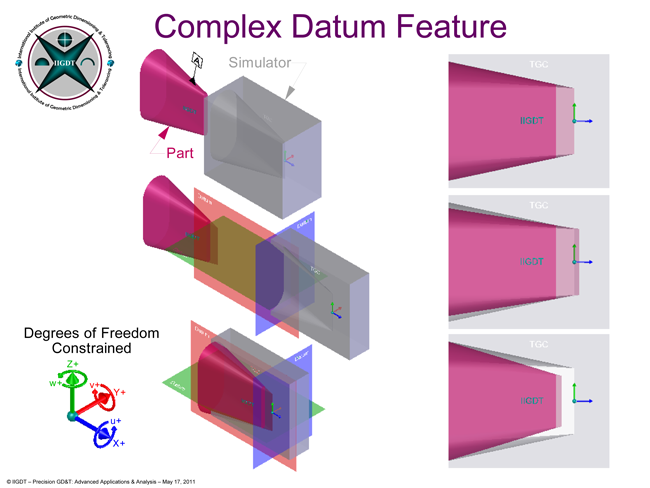

Example Graphics from Course Secondary & Tertiary Datums at RFS Complex Datum Feature
  Secondary & Tertiary Datums at RFS Complex Datum Feature

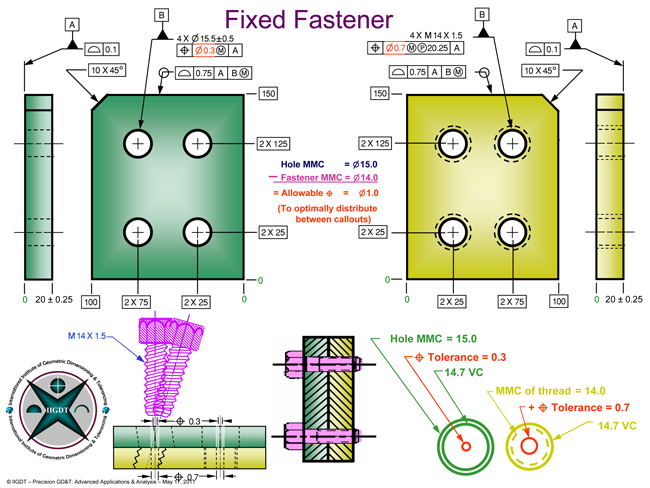

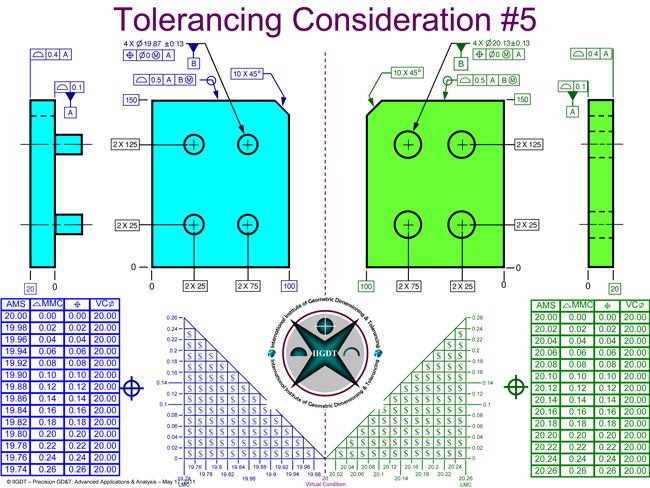

  Tolerancing Consideration #5 Fixed Fastener
  Tolerancing Consideration #5 Fixed Fastener

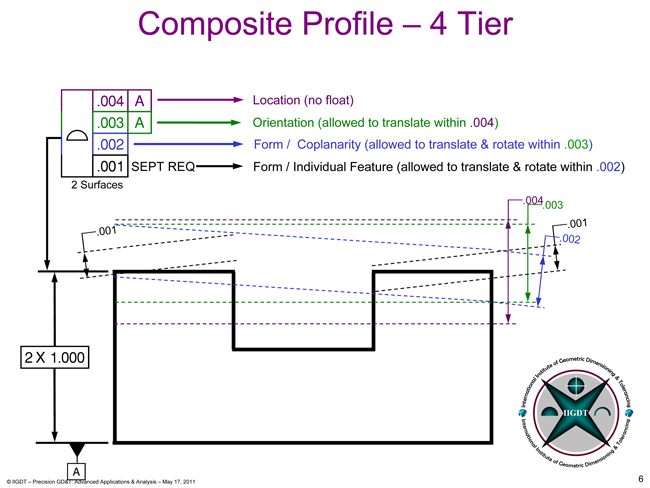

  Composite Profile – 4 Tier Composite Profile – 4 Tier
  Composite Profile – 4 Tier Composite Profile – 4 Tier

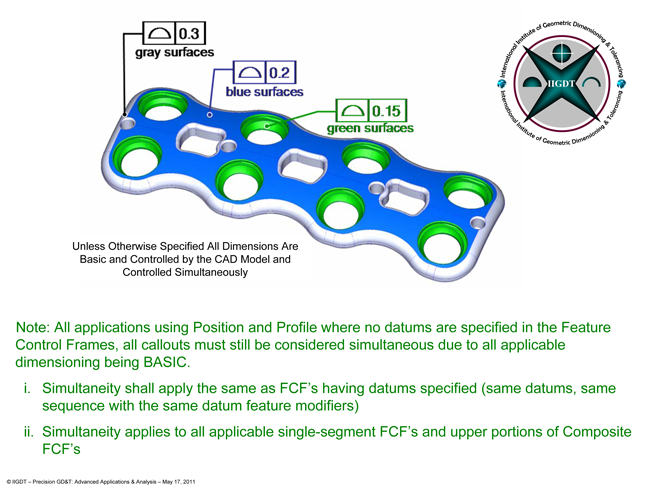

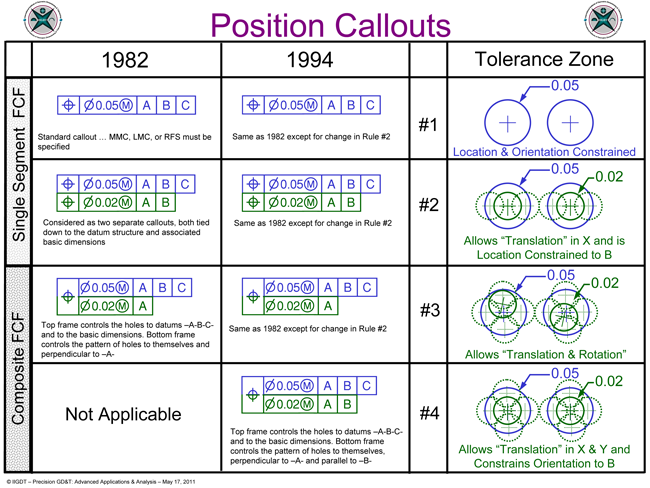

  Position and Profile where no datums are specified in the Feature Control Frames Position Callouts
  Position and Profile where no datums are specified in the Feature Control Frames Position Callouts

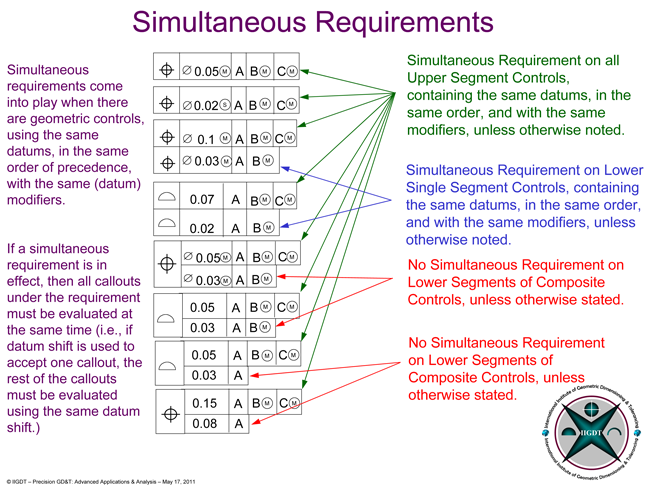

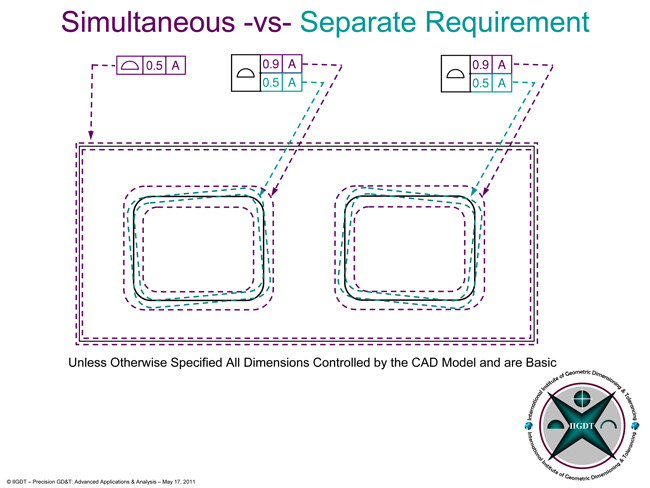

  Simultaneous Requirements
  Simultaneous Requirements

  Note : ZoomClick on any image to zoom in.
